Saturday, November 5, Moving along with the restoration. A few notes on changes I've decided on. I am keeping the yoke gloss black but have to decided to paint the motor metallic silver, since the blade guard that attaches to it will be metallic silver. I have also decided to use gloss black ball knobs and pulls.

I purchased these from J. Here is the link to the page for these ball knobs. Winco Gloss black ball knobs Since there will be no red in this rebuild, I will be painting the embossed DeWalt on the end cap in black instead of red.

I began the next step by dis-assembling the yoke and motor. The motor comes off the yoke on one side with one bolt which has an Allen head, on the other side there are three Dewalt mbf radial arm saw fan head bolts holding it in place. I'm not certain yet as I haven't done the research, but maybe the two small ones on the side are for alignment? Any way there is a large bolt in the center and two smaller ones on the side. Soak them with PB Blaster over night and they should come out the next day relatively easily.

I removed the alignment set screws that hold the bushing in place on the open end of the yoke. I took the bushing out, measured those set screws and then put them back in to protect the threads during sandblasting and painting. I ordered these on eBay from the lightingstainless store. Use this guy, he ships quickly and has quality hardware. I get nothing for that, I only recommend sources when they provide products that perform for me.

The motor end bells come off by loosening the four nuts holding the long retaining bolts. Once the bolts are out the end bells are very tough to dewalt mbf radial arm saw fan off. This is where you have to be very careful. If you break the motor fan, you have to either find a replacement fan from an old machine as new replacements aren't available unless Wolfe machinery comes back in business or buy an old replacement motor on eBay. The bearings on the motor shafts need serious PB Blasting and WD before dewalt mbf radial arm saw fan can even think of getting them to release.

Usually, from my reading the forums and rebuild articles, the wiring end bell comes off easily, this wasn't the case for me. You need an arbor press of gear puller to do this properly although if your mechanically inclined you can fabricate something to use in a vise so opening the vise acts as a puller.

Since I have three more machines to do and possibly more after, I will design and build something for that purpose. I'll post on that when it happens, in the meantime take great care trying to get the bearings off the motor shafts if you intend on replacing them.

The motor on this machine ran but sounded a bit off which is why I'm taking it apart to rebuild it. Once I took the motor nameplate off, the electrics inside the housing looked to be in great shape. Not much to do there. I tried cleaning the nameplate as it was very blotchy. It din't come out write, an as they are not embossed, the usual methods don't work. I went on practicalmachinist. I ordered one for each motor I have. Once I receive them, I will post side dewalt mbf radial arm saw fan sides and give you his contact info should they be of the quality consistent with this rebuild.

The dewalt mbf radial arm saw fan nameplate is also shown below. Since I broke the motor fan, it was dewalt mbf radial arm saw fan easy to use the gear puller to get the bearing and plate off. After thoroughly cleaning the blade end bearing, it spun very freely so I am not going to replace it. I finished painting most of the parts except for the arm. Each part received one coat of primer and two coats of paint. Once I give everything days to fully dry, I will give them all one coat of gloss lacquer.

Here are the all parts but the arm painted except for the motor housing which is only primed. You may have noticed that the end bell of the motor still has the motor arbor in it. I tried for 3 days to get that bearing to come loose. I could not. After receiving many suggestions on what to do, including drilling a center hole, tapping it and screwing a bolt through it to push the arbor and bearing out, I decided that since I PB Blasted and WD'd it so much and it was spinning beautifully that I would leave it alone.

That meant some serious work covering the entire arbor assembly so I could sandblast the end bell and paint it. Here is what it looked like prior to sandblasting. And here it is all primed and ready to be painted, with the other end bell and drive plate next to it. I had another bearing problem in the roller head. One of the bearing bolts would not come out and I noticed it was very slightly bent by the threads.

I had to heat the housing and cool the bearing and then pound it out with a hammer and another bolt. Of course that destroyed the threads on that bearing bolt, but I easily found replacements on the Delphi forum mentioned above. The only thing left to do now is work on the arm. I have to remove the crank and top cap, take out the elevating screw so I can thoroughly clean it and the column, sandblast and paint the arm and top cap.

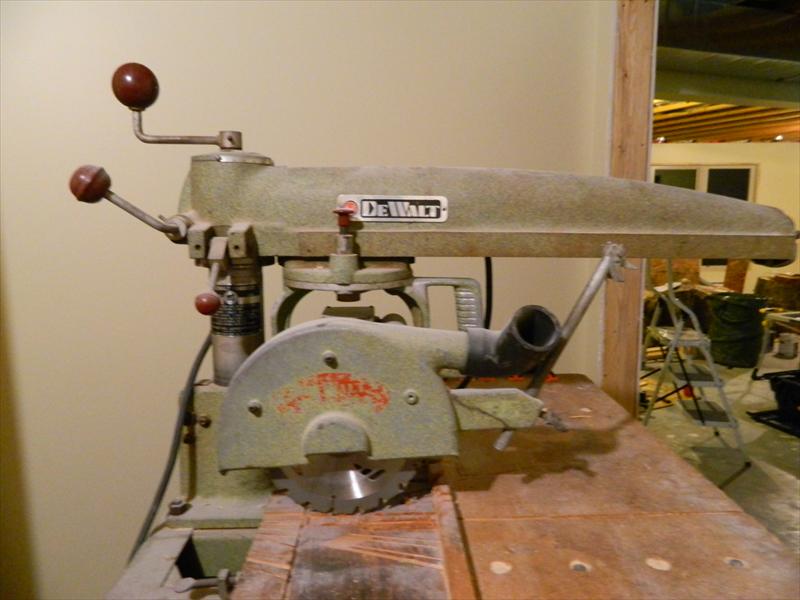

I have now begun the rebuild process for the first of three MBF's that I hope to get three perfectly functioning machines from, but I'll settle for two. One of the MBF's waiting to be worked on is actually in extremely good physical and mechanical condition so I am leaving that alone for now. It is the one on top in the photo below. In doing some research on sliding compound miter saws in mid I stumbled upon a photograph of a beautifully restored radial arm saw by Shane Whitlock and the bug was born.

I have always loved rebuilding and fixing things and am bored when I have no project to dewalt mbf radial arm saw fan me. That image above led me to begin my quest for some of these beautifully built machines to bring back to life; even better than they were before. Thank dewalt mbf radial arm saw fan Shane for pushing me in that direction with your work. Why three you ask? I wanted to end up with two perfectly restored saws and felt having three would give me a better chance of not having to scour for parts.

I will be commencing the project of restoring the first MBF in the dewalt mbf radial arm saw fan weeks as I assemble some of the tooling I will need to do the job properly. This way Dewalt 3526 Radial Arm Saw Fan I can blast my own parts the way I want them.

Look for my next post on the tear-down process, sometime early dewalt mbf radial arm saw fan week. I'll post photos of all three MBF's then, when I have them all in my possession. Newer Posts Home. Subscribe to: Posts Atom.

Nov 05,  · A follow along of a rebuild of a vintage 's DeWalt MBF radial arm saw. The DeWalt Radial Saw is still the single best piece of woodworking equipment ever built. When adjusted properly it cannot be beat for quality cuts in any wood. The MBF has a 3/4 hp motor and ideally runs an 8" blade, but can run a 9" blade. Once re-conditioned, if properly maintained it will run for another 50 years. DeWalt MBF Radial Arm Saw Motor Fan by racer - Thingiverse. DeWalt MBF 9" Saw Restoration Prologue: Here I'm using the auxiliary output shaft of a DeWalt model radial saw to polish the control knobs. The box isn't there by happenstance either, the large red knob went bounding down my driveway after I snagged it on the wheel, every operation reveals something needing improvement in the.
