euro-style-hinge-adjustment-zero KNOWLEDGE BASE > How to Guides > How to adjust EURO style hinges > How to adjust EURO style hinges. How to adjust EURO style hinges. Some of the problems you will come across can be seen in this pair of doors.  The adjustment for this is done with the second screw on the hinge, the one nearest the edge of the door. Tightening or slackening this screw jacks to door across to move the hinges fractionally.  It takes very minimal adjustment in most cases to get the door back in alignment. To get this door back in alignment the top hinge needed to be pushed out by tightening the jacking screw to stop it binding and the bottom hinge jacking screw slackened to bring it back in and make the joint parallel with good clearance. For CLIP hinges, loosen the rear screws on all hinges, adjust and retighten. www.- Technical specifications subject to change without notice. www.- © Printed in Euro Style Hinge Adjustment Theory USA CLIP mounting plate adjustments Height adjustment Cam wing mounting plate Rotate cam screw on the mounting plate to adjust door position (+/- 2 mm). One-piece wing plate Loosen screws on the mounting plate. Adjust door to position and tighten screws (+/- 3 mm). Cam in-line mounting plate Rotate cam screw on the mounting plate to adjust door position (+/- 2 mm). Face frame cam adapter plate Rotat. Euro-style hinges may seem complicated until you try them for the first time. Then you'll see how easy they are to install and why so many production shops use them exclusively for hanging cabinet doors. Once in place, Euro-style hinges also allow for some helpful adjustments that other hinge styles don't. Depending on the specific hinge, you can adjust your cabinet doors up and down, side to side and in and out by turning a couple of screws. These versatile hinges are designed to accommodate either face frame or frameless cabinets. For either style of cabinet, you can buy hinges to. Thanks to all authors for creating a page that has been readtimes. Download Article Explore this Article methods. A pair can typically support up to 15 lbs, 3 up to 30 lbs, 4 hinges up to 45 lbs. Related Articles. Screws, when stripped, are seldom screwed down tight enough.

Method 1 of All rights reserved. This image may not be used by other entities without the express written consent of wikiHow, Inc. Close the cabinet doors and look at their positioning. It will help you determine what kind of adjustments you need to make. First, check that each door lines up with its neighbors. Look for any doors that look too high, too low, have a gap between them, or overlap one another too much.

Make sure the doors close all the way as well. For example, one could be crooked and also need to be raised. Plan on tackling the adjustments one at a time.

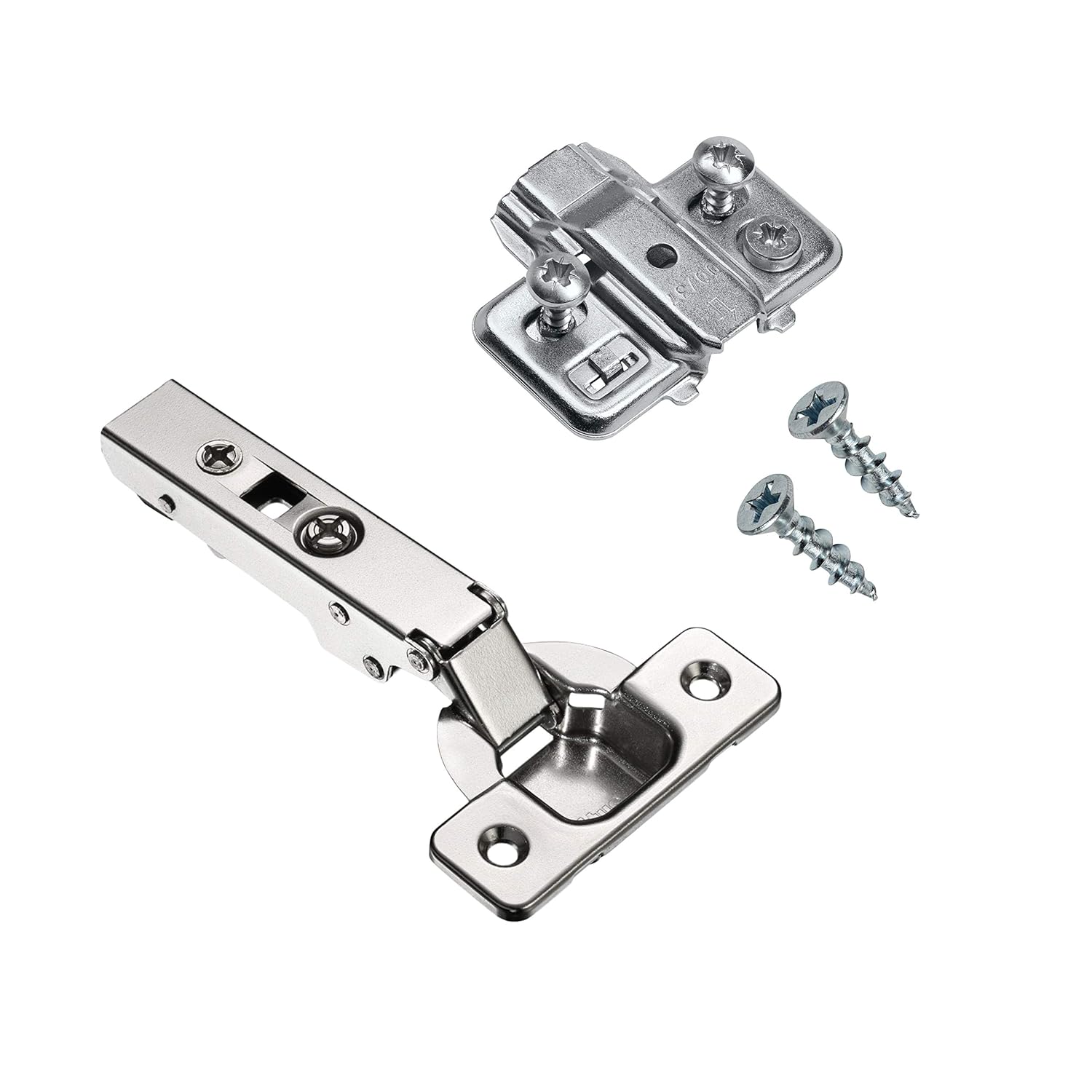

Open the door wide so that you can access the hinge. Each door has a hinge mounted to it and the inside surface of the cabinet. Swing the door all the way open to fully extend the hinge. You will then be able to reach the screws on the inner part of the hinge.

They are only there to hold the hinge in place. Hold the door steady before you begin adjusting it. Adjusting Euro-style hinges is easier when you have another person holding onto the door. Let someone else brace the door Euro Style Hinge Adjustment Examples while you loosen the screws. They can prevent the door from falling out of alignment and allow you to reposition it once it is able to be moved. However, keep a firm grip on the door at all times in case it comes loose.

Method 2 of Use the upper and lower screws to move the door vertically. Each hinge has a pair of screws oriented vertically. One will be above the hinge and the other will be below it. Turn these screws counterclockwise to loosen them until you are able to move the door up or down. Try to keep the door flush with the bottom of the cabinet and about 4 mm 0. That is the perfect height for most cabinet doors.

Adjust the rear screw if you need to move the door in or out. The screw responsible for Euro Style Hinge Adjustment Tool in and out adjustments is furthest from the door. Turn it counterclockwise to move the door away from the cabinet frame. Tightening it will move the door back toward the frame.

After retightening the screws, you can test this by shutting the door to see if it glides closed smoothly. Adjust the hinges in this direction one at a time to prevent the door from falling out of position. If you loosen them all at once, support the door.

Turn the innermost screw to shift the door horizontally. Rotate the hinge screw closest to the door. Turning it clockwise moves the door closer toward the far side of the cabinet frame. Turning it counterclockwise moves the door back toward the hinge.

Keep making minor adjustments to center the door on the frame and reduce any gaps between adjacent doors. Close the cabinet doors after each adjustment to check your progress. Make gradual corrections to avoid throwing the doors out of alignment. Open it back up if you need to make further adjustments. Method 3 of Turn the first screw to shift the door horizontally.

With the door open, look for a single screw along the front edge of the hinge. Expect it to be facing out from the hinge toward you. Use a Phillips screwdriver to twist it. The door slides to the left when you turn the screw counterclockwise and to the right when you turn it in the opposite direction.

You will see them in a line on the cabinet side of the hinge. Adjust the middle screw to move the door up and down. Look for the vertical adjustment screw in the center of the hinge, usually recessed inside of it. Reach in with a screwdriver to loosen it by turning it counterclockwise. Once you have the door where you want it, tighten the screw back up.

It isn't Euro Style Hinge Adjustment Quotes recessed deeply at all, so finding it isn't a problem. Use the third screw to move the door in and out. Turn the screw counterclockwise to move the door out toward you. Twist it clockwise to push the door back in toward the cabinet. Use it to center the door in the frame. You can use it as a reference to determine when the door is in the right place. Check the part of the hinge attached to the door.

You should be able to spot a small plastic tab inside the mounting plate. You can pull the tab out or slide it back in to change how smoothly the door closes when you try shutting it. Depending on how heavy the cabinet door is, one setting may be better than another one.

This setting allows the door to close almost all of the way before the tab catches it and lets it close softly. The medium setting is fine for most cabinet doors.

Pull the tab halfway out for it. If you have big, heavy doors, slide the tab out as far as you can. Open and close the door once to finish the adjustment. Shut the door, open it all the way up, and then close it again.

Use the screws if you need to reposition the door over the cabinet frame. Did you know you can read answers researched by wikiHow Staff? Unlock staff-researched answers by supporting wikiHow. Yes No. Not Helpful 1 Helpful 0. Not Helpful 0 Helpful 0. Not Helpful 0 Helpful 1. The face plate on the front of my European hinge has come off of the back part of the hinge.

European hinges on my cabinet door is very fragile and disengages whenever I open the drop-down door. I must reattach the two part hinge virtually every door opening.
