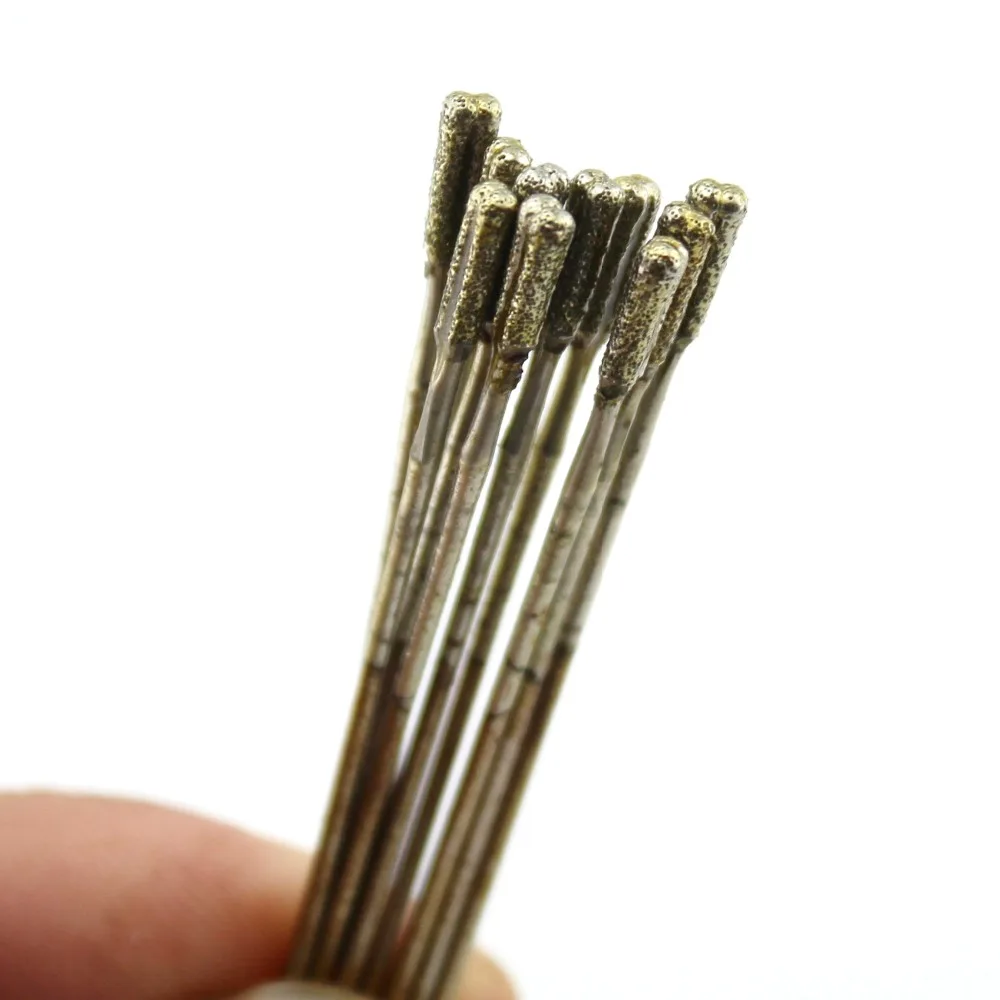

small-stone-carving-tools-40 Equipped with diamond-coated burs, it can make the job of carving small details or getting into holes and crevices much easier. There are also specialty tools such as bushing chisels, frosting chisels, cup chisel, and criss-cross chisel. They come in carfing sizes and shapes. An effective way to remove stone quickly is to make a series of parallel cagving about an inch apart, then break them off with a hammer and chisel. Pneumatic Stone Small stone carving tools 4.0 Tools.

Toothed hammers are for breaking the stone surfaces and texturing. Every Milani chisel is hand made of Italian Steel. They come in various sizes and shapes. The larger the rasp, the coarser and more aggressive. Milani has diamond rifflers made for marble, and we also carry Strauss small equine dental tools made of industrial diamonds in Israel.

For marble detail work they are indispensable. The words "rasp" and "riffler" are used interchangeably. The Italians call them "rifflers". Like us on Facebook and stay informed on upcoming sales, specials, and more. Please wait Call us at PST.

Sign in or Create an account. It is used for roughing out and removing material quickly. The ones shown here are hardened steel which work well on softer stones and marble. For harder stones like granite, carbide tipped chisels are required.

On soft stone, the point chisel can leave a 'stone bruise', or white mark, when it has gone deeper into the stone than your intended surface. Care must be taken not to 'bury' the chisel into the stone. These unintended white marks will show up when the stone is polished. These bruises can only be removed by carving or filing down into the stone past the depth of the bruise. The tooth chisel is used after the point chisel has roughed out the basic shape.

It further refines the forms and removes the peaks and valleys left by the point chisel. The flat and rondel chisels come into play for smoothing out the texture left by the tooth chisel and prepares the stone for finishing. Any stone bruises left by the point or tooth chisels can be removed with a flat chisel or a riffler file.

Hand tools for harder stones, like granite or sandstone, must be carbide tipped. The three tools on the left are point chisels. The two on the right are flats. In the center is a point chisel made in the Japanese style, with a round piece of carbide in the center of the tool, like a pencil. While carbide is a very hard metal, it is also very brittle and can be chipped if stuck against the stone incorrectly.

Carbide can be sharpened with a green stone on a table grinder. Unlike steel, carbide should never be quenched, since the quick cooling could cause it to shatter. Hammers come in a variety of weights Small Stone Carving Tools 45 for doing different jobs. The small 1 pound hammer is used for carving small details. The hammer on the far left is designed for use on granite and has a hardened steel head. It is used with chisels with untempered ends and will cause the chisel to mushroom over.

To the right of it is a lump hammer with a soft steel head. It can be used with chisels that have tempered ends, and in this combination, the hammer head will mushroom over.

Never use a hardened hammer with a hardened steel chisel end. Striking too hard with this combination could cause metal fragments to fly off the end of the chisel like shrapnel. The 3 pound hammer has sufficient weight to effectively drive a point chisel or pitching tool in removing large chunks of stone. The 'rock buster' on the right has a carbide edge which can be placed on the edge of a stone, similar to a pitching tool, and struck with another hammer to bust off large chunks of stone.

The handset or pitching tool is used for knocking large chunks of stone off the edge of a square block. It can be very effective in removing a lot of stone quickly. The tracing tool is used for creating a more precise line along the edge of a block. The final shaping of the softer stones can be done with rasps. Power tools for finishing can sometimes be hard to control and give a mechanical look.

The use of rasps provides a more natural, flowing finish. The rasp's scratch marks can be left as a textural element, or removed with sandpaper. Grits run from coarse grit , medium , , grit , to fine , , , 1, grit. Water is applied over the stone while sanding to remove the sheared-off dust particles.

Marble begins to show a polish at about grit. Granite doesn't polish until 3, grit. The chisels used with pneumatic hammers are basically the same as the hand tools. The chisel types include: point, tooth, rondel, gouge, and flat. They can be either all steel or, as in this case, carbide tipped. Carbide is much harder and more brittle than tempered steel, so it will keep an edge much longer.

A carbide chisel is sharpened with a green wheel on a grinder, and is never quenched. These pneumatic hammers from Trow and Holden work on an internal piston driven by compressed air. They impart many rapid strikes per second. With continuous use, the constant vibration of the hammer can cause numbness in the hands.

Anti-vibration gloves with padded palms reduce this impact. There are also specialty tools such as bushing chisels, frosting chisels, cup chisel, and criss-cross chisel. The 4 point and 9 point bushing tools are used to pulverize granite crystals when doing the final shaping of the stone. The criss-cross tool can create interesting textures. The cup tool is used for shaping concave surfaces. The frosting tool is used for texturing marble.

Each size hammer requires a particular amount of air consumption to work properly.
