circle-jig-router-bits Large circle jig quickly and easily attaches to the included TurnLock circle guide head. 13 in. offset base provides added stability when finishing the edges on your work piece using your router. Offset base has an oversized handle knob is easy to grip providing superior control of your router.  A router bit specific to the device is also included. Once the face plate is mounted on the router the base plate and rotation arm is simply snapped into place and the cut is made around a small centering screw. The results are clean and precise. Fit the router with a straight bit. Set the depth of the first pass to less than 1/8-inch. Step 6: Set the pivot point.  Plus, I have a battery-powered router, so deeper cuts either caused the bit to stall or the groove to get really clogged with sawdust. Hovered the router over the wood, and then plunge into the cut, pivoting the router around the circle one time. Shut off the router and vacuum the path clean. Set the depth of the router bit down another 1/8-inch and repeated the process until you cut through the full depth of the board and are left with a perfectly circular cut. Step 8: Stool Project - Cut the legs. Jenn Largesse.  Hove the router and jig over the cut and mark the starting and stopping point on the board. Step Charcuterie Project - Cut the handle. Jenn Largesse. A circle-cutting jig for the Festool router. Rather than giant holes, this one is for "medium-sized" holes - holes that are just a bit too big for a For Circle Cutting Jig. Demonstration of my circle cutting jig for the router. Build details here: www.- YouTube. Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.  The Rockler Ellipse/Circle Router Jig lets you cut circles and ellipse shapes over a wide range of dimensions and proportions. With your router and this handy, easy-to-use jig, you'll be able to make picture frames, mirrors, signs, tabletops and more. Meer ideeën.

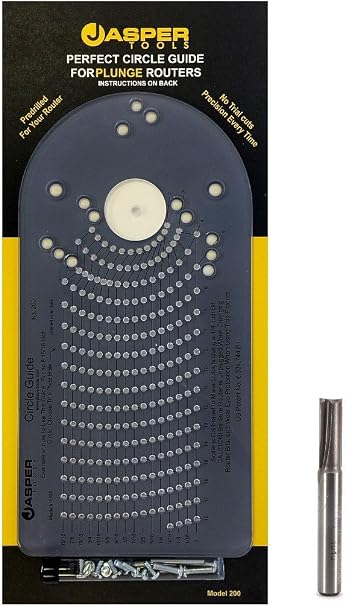

This instructable will show how to make an accurate and easy to use jig for cutting perfect circles with a router. There are many pre-made circle cutting jigs on the market, but they are fairly expensive, and many of them don't have a circle jig router bits large maximum radius.

Several of them also rely on a series of holes to control the size, which can be a problem if you need a very precisely sized circle that happens to be in between the sizes of two of the holes. I circle jig router bits show how I made a precise circle cutting jig using nothing but scrap plywood, and a few nuts and bolts. This basic plan can be modified to make accurate circles of almost any size. Disclaimer: Please practice shop safety, especially when working with power tools.

Take all neccesary safety precautions, and don't use circle jig router bits tools or procedures you're unfamiliar with or uncomfortable using. The base circle jig router bits could be made of any flat sheet good material, but preferably MDF or cabinet grade plywood.

Cut the sheet goods to " wider than your router base, and " longer than the largest radius you plan to circle jig router bits. It will allow me cut circles up to about 46" in diameter. Use circle jig router bits pencil to mark the screw mounting circle jig router bits, the center hole, and trace around the outside diameter.

Circle jig router bits plunge router is preferable for this, but not neccesary. I already had the circle jig router bits base router that will be used in this jig out, and didn't feel like taking my plunge router out of my router table. Unplugging the router anytime you install or change bits is a good safety habit to practice. Clamp the base to a stable work surface, like circle jig router bits table or workbench, with the side you will mount the router to face down.

Then clamp a straight edge scrap of plywood in this case to the base to act as a fence, or guide. Line up the straight edge with the outside edge where you marked the baseplate, and parallel to the length of the base.

This will ensure that the slot will be centered in the base. Using the straight edge as a guide, route a slot between the mark 1" from the baseplate, and the mark 1" from the other end of the base. If as you look at it, the fence is to the left of the router, start at the end closest to you.

If the fence is to the right of the router, start on the end furthest from you. This will pull the router into the fence, which not only makes it easier to make a perfect slot, but is also safer. With the fence still in place, rout the smaller slot the in the same way as the first one. Drill holes for the mounting screws, making them just a little bigger than the diameter of your screws.

Flip the base over, and using the holes as a guide, trace the baseplate on this side too. Circle jig router bits which side you want to moun the router on, and chamfer the mounting holes circle jig router bits the opposite side.

You want the chamfers just deep enough that the screws will sit beneath the surace. Drill or rout out the center hole. It just has circle jig router bits be slightly bigger than the largest router bit you might use. A hole saw is probably best for larger holes, but I used a twist bit, and it caught and circle jig router bits a pretty messy hole.

It won't really effect anything other than aesthetics, but next time I'll take the time to get the correct bit out. I did clean up the hole a little with the router later. The mounting screws are most likely much too short to reach all the way through circle jig router bits base material.

We could buy longer mounting screws, but unless you have a set of really long router bits, the thickness of the base may limit the depth of cuts you can make with the finished jig. To solve both problems, I reccomend routing a recess in the base for the router to sit down in. After clamping the base to a work surface with the router mounting side up, rout out the baseplate area, using the line you traced as a guide. It's easiest to start at the center and work around the the hole clockwise, sneaking up on the final size with a few light passes.

Now the baseplate can be removed from the router, and circle jig router bits router can be installed in the jig using the baseplate screws. Make sure all the screws sit flush with the bottom suface of the jig so that they won't catch on anything. While the easiest thing to do is buy a t-handle or star handle for jigs, but I'm too cheap to do that, so I make my own. It takes a piece of scrap wood, a t-nut which costs just a few cents, and takes just a few minutes to make.

I make them in bulk circle jig router bits use in all of my jigs, and I won't go into the process here. It's easy enough to simply cut out a shape you like, drill a hole in the center to accept the t-nut, and hammer it in place.

I didn't have any threaded rod, so I just cut the head off of a 3" bolt. Screw the nut onto the center of the threaded rod, and then place the washer on. Slide the portion circle jig router bits the washer up throught the slot in the base, and then screw the handle on to the top. Alternatively, if you have access to a metal lathe as I do, you can cut the threads off one end of the threaded rod, making a smooth post of a specific size. That way you can use a drill bit that matches the specific size, and always be sure to have a nice tight fit.

The threaded rod with an appropriate sized drill bit should work well enough for most applications though. This step is entirely optional, but I thought it might make it slightly easier to use.

The base had quite a bit of uneccesary wood, so Circle jig router bits decided to cut it off, and round the corners. I also slightly beveled the edges on the bottom side with some sandpaper so that they wouldn't catch on anything as they slide around the circle.

The first step to using it is setting the post height. Measure the thickness of the material you'll be cutting a circle in. Adjust the circle jig router bits on the post so that it sticks out slightly less than the material is thick.

Mark the center of the planned circle, and drill a hole that the threaded rod post will fit in snugly. Set the post at the desired distance from the router bit, and circle jig router bits the handle on top to lock it in place.

If you are cutting all the way through your material, make sure to hang the portion being cut off the table, and keep rotating the material periodically during the cut to keep from cutting the table. You could also put a sacrificial piece of scrap underneath the material instead.

It's generally safer and easier to cut outer edges of circles in a counter-clockwise direction, and inside edges clockwise. If you don't want a small hole in the cener of whatever you're cutting, you can use a sacrificial piece on top. Drill circle jig router bits hole in a piece of scrap, and use doublesided tape to secure it to the workpiece with the hole at the center of where you want to cut the circle.

Then just increase the depth of cut by the thickness of the sacrificial piece, and cut as usual. Alternatively, if a hole would be acceptable on the underside, but not on top, you can drill the hole only part way through the material, and cut from the bottom. Have fun, and be safe! I have the same fixed-base Porter Cable router and made a circle-routing jig for it. What I'm trying to sort out is how to start the cuttingdo you have to loosen the router height adjustment while it's running and rotate it down to the depth you want and re-tighten?

I probably should just use my plunge circle jig router bits, I guess! Reply 7 months ago. Reply 2 years ago. Don't ever loosen or attempt to adjust the depth while it's plugged in, let alone running. A plunge router is safer, but it can be done easily without one. Set the depth with the router un-plugged, plug it in, turn it on while holding it securely it will jump a bit when you turn it onthen slowly lower the bit into the workpiece while keeping the side of the baseplate against the fence.

Tip 2 years ago. One very important thing to remember is to take into account the thickness of the cutter bit you are using, and compensate for half of that in your finished circle diameter.

This is great! I came up with a really similar jig on my own. Good to see it's a common solution :. Once you tighten the nut to hold the desired size of the circle, it seems like you will be tightening the fixture to the work piece making it hard to go around.? Reply 5 years ago. What none of the pictures show is the post that sticks down from the jig under the t-handle.

When you tighten the t-handle you are only tightening the post into position. The post then will drop into the hole you drill in the center of your workpiece and allow the jig to circle jig router bits rotate deg around it. Nice looking jig. Having a good jig is the secret to most of my successful projects. I use this circle cutting technique frequently, but I just take a long strip of fiberboard and set it up for a fixed radius. I just posted my Cardboard Ball Chair www.

If I cut a lot of circles of various sizes I'd certainly make a jig like this. The all-thread allowed for very precise adjustments and long radii. I used this to make concentric rounded grooves in an old wood door. The resulting pattern made the door from a very junky piece to something that looked like art.

I love using radius techniques whenever possible. You can do a lot with them. By tashiandmo Follow. More by the author:. I would think that most of not all of these materials could be found in most workshops. The cost to purchase these items would only be a few dollars. It does of course assume that you have a router to use the jig with. Make a mark on the center line one inch away from the outer edge of the baseplate.

If the fence is to the right of the router, start on the end furthest from you. This will pull the router into the fence, which not only makes it easier to make a perfect slot, but is also safer. With the router unplugged, replace the 3/4" bit with the 1/4" bit, and set the depth to go all the way through the base. Milescraft's Innovative Circle Cutting Jigs Increase Efficiency and Accuracy. Milescraft CircleGuideKit can cut a circle from " to 52" in diameter with your router. The SawGuide can cut circles from 4″ . Jun 01,  · How to Make a DIY Circle Jig: Step 1: Remove the router footplate. Jenn Largesse. To get started, remove the battery (or unplug) the router. Unscrew the screws that hold the footplate on the router, and then remove the footplate. Step 2: Trace the footplate onto a board. Jenn Largesse.
