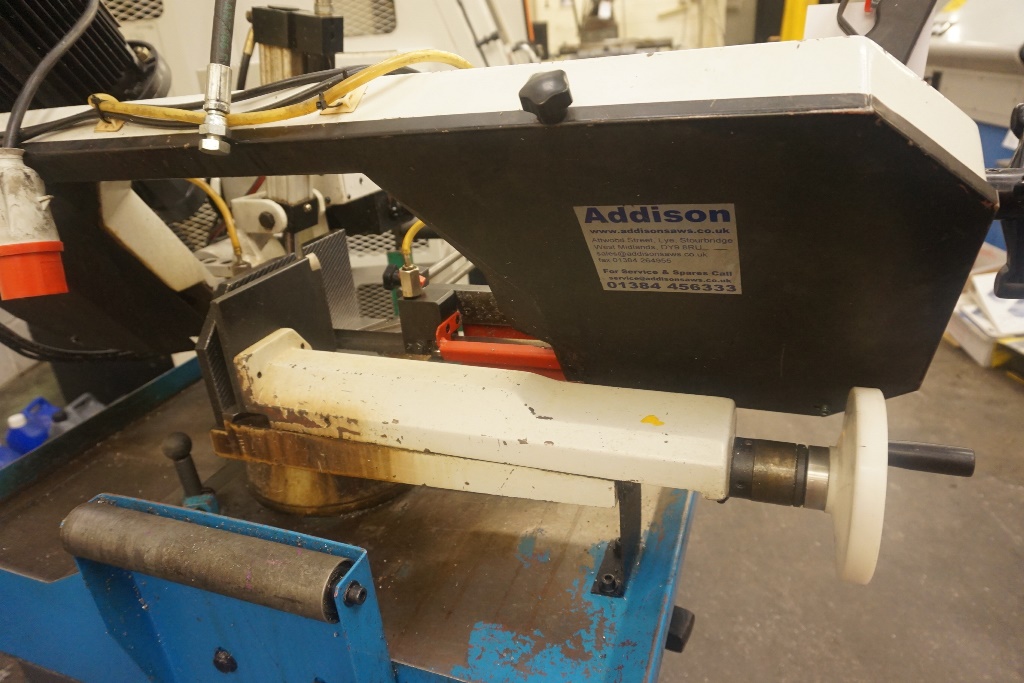

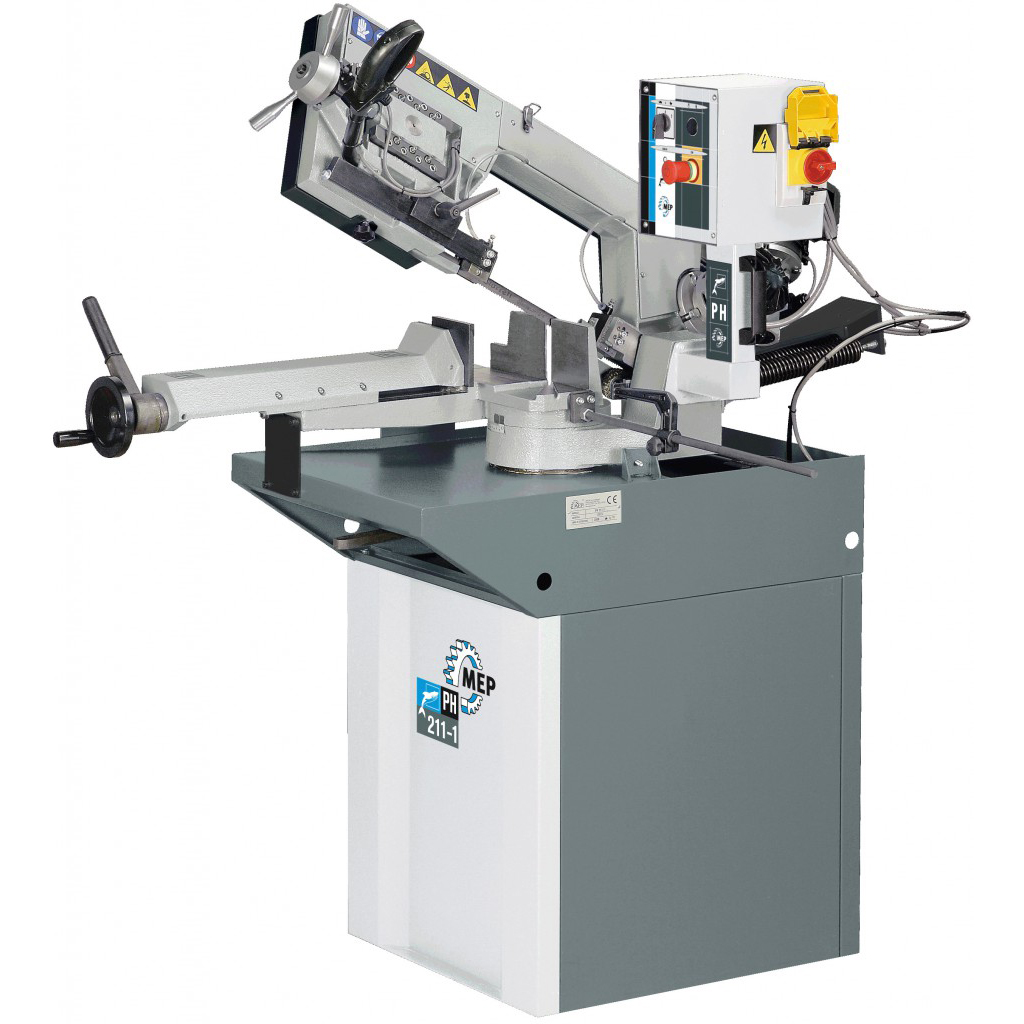

horizontal-bandsaw-guard-01 I had temporarily fastened some horizontal pieces to the bottom of the bandsaw frame so I could stand it up. I liked how this worked out and wanted to put caster wheels on the bottom. But as it was, the saw would have been too low, so I glued together some thicker pieces to bring it up to the right height, then squared them up on the jointer. Having drilled the screw holes in the horizontal leg pieces, I positioned them against the bottom of the bandsaw's legs (by tipping the bandsaw frame on it's side). I then placed the screws in the holes and hit them wit a mallet to leave divots. Mitering Horizontal Bandsaws. Metal Vertical Bandsaws. Metal/Wood Vertical Bandsaws. Abrasive Saws. Cold Saws.  With a fully guarded blade, end-of-cut motor shut off and CSA certification, you can be assured JET has your operators well-being top of mind. Bi-metal bandsaw blade accessories. 1" x " x /2 X VT FOR HBSEVS. Learn More. 1" x " x /2 X VT FOR HBSEVS. Learn More. 1" x" x /2" X VT FOR HBSEVS. Learn More. Horizontal Metal Bandsaw. DO NOT use this machine unless the technician has instructed you in its safe use and operation and has given permission. Safety glasses must be worn at all times in Long and loose hair must be work areas. contained.  2. Check that all guards are in position. 3. Ensure hydraulic damping mechanism functions. 4. Check that the blade is in good condition.  Recapulation of Thermodynamics. Загружено: Kali Dass.

A horizontal-type band saw having a drive wheel and a support wheel mounted on a base, and a saw blade supported on the wheels, a work support member, and horizontally adjustable substantially vertically positioned guide means mounted one on each side of the work support member, each having a recess for receiving and guiding a portion of the saw blade in a vertical cutting position, and elongate channel-form blade guards each affixed at one end to one of said horizontal bandsaw guard 01 blade guides and having the saw blade disposed within the channels of the blade guards, the other ends of the blade guards telescoping into protective housings covering the drive and support wheels.

In an improved form, the walls and bottom of the channelform blade guards are sufficiently spaced from the blade guides so that the blade may be removed from the guides and blade horizontal bandsaw guard 01 without disassembling the structure. In a further improved embodiment, a hinged cover is provided on the blade guard to cover the open channel during operation, and to be opened for removal of the saw blade.

United States Patent [19] Wells m 3, Aug. Wells, Three Rivers, Mich. Hueschen [5 7] ABSTRACT A horizontal-type band saw having a drive wheel and a support wheel mounted on a base, and a saw blade supported on the wheels, a work support member, and horizontally adjustable substantially vertically positioned guide means mounted one on each Horizontal Bandsaw Guard Work horizontal bandsaw guard 01 of the work support member, each having a recess for receiving and guiding a portion of the saw blade in a vertical cutting position, and elongate channel-form blade guards each affixed at one end to one of said vertical blade guides and having the saw blade disposed within the channels of the blade guards, the other ends of the blade guards telescoping into protective housings covering the drive and support wheels.

The spacing between the two vertical guides is adjustable to conform to the width of the workpiece, it being desirable to space the two blade guides as closely as possible while still permitting the workpiece to be inserted therebetween.

It is customary to provide protective housings over the driving and support wheels and the rear portion of the band saw blade. However, because the blade guides must be moved back and forth in order to conform to the various sizes of workpieces, a fixed guard for the blade cannot be used. It is highly desirable to have a blade guard to prevent accidental contact by the operator, and also to protect the operator in case the band saw blade breaks, as occasionally occurs particularly when a strong force is utilized to apply the blade to the workpiece.

It is still further an object to provide blade guards of the type described which almost completely enclose portions of the blade disposed therein on both sides of the workpiece being cut. It is further an object to provide a blade guard so dimensioned and positioned with respect to the blade guides of the saw that the blade can be removed without dismantling the blade guards or blade guide. It is still further an object to provide a blade guard which moves with the blade guides when they are adjusted.

It is an additional object to provide a blade guard of the type described which is relatively simple to horizontal bandsaw guard 01 and to mount on a conventional horizontal band saw. Still other objects will readily present themselves to one skilled in the art upon reference to the ensuing specification, the drawings, and the claims. According to the invention, elongate blade guards are provided having an upwardly open channel and each affixed at one end to one of the blade guides.

The saw blade is completely positioned within the channel defined by the side walls and bottom wall of the blade guards. The blade guards move with the guides during adjustment. The channels of the blade guides are so dimensioned that the blade can be slipped out of the blade guides, moved downwardly and forwardly between the guides and bottom walls of the guards, and then moved upwardly between the front walls of the guards and the guides, and removed from the apparatus without disassembling either the guides or the blade guards.

Workpiece holders l5 and 16 are mounted on the machine base by means of bolts A horizontal beam 18 is mounted on beam supports 19 and 20 which horizontal bandsaw guard 01 in turn affixed to the machine base Adjustable vertical blade guide assemblies 21 and 22 are adjustably mounted on the horizontal beam 18 and comprise, respectively, vertical beam members 23 and 24, upper clamp members 25 and 26 affixed to the beam members 23 and 24, respectively, lower clamp members 27 and 28 affixed to the beam members 23 and 24 by bolts, thumbscrews 29 for clamping the vertical blade guide arm assemblies 21 and 22 horizontal bandsaw guard 01 the horizontal beam 18, and trim guards 30 and Affixed to the bottom of guide arm assemblies 21 and 22 are roller guide assemblies 32 and 33 which are similar in structure.

As shown particularly in FIGS. As further shown in FIG. A drive wheel guard 49 is mounted over the drive wheel and affixed to the machine base. A blade support wheel 50 is rotatably mounted on the machine base and is covered by a support wheel guard An endless band saw blade 52 is horizontal bandsaw guard 01 over the drive wheel 43 and the support wheel A relatively narrow work support plate 56 is mounted on the machine base immediately below the saw blade The blade guards 57 and 58 are so positioned horizontal bandsaw guard 01 spacedthat the blade may be removed from its position between the lateral guide rollers, moved downwardly and forwardly to clear the front guide roller, and then upwardly through the space between the forward guide roller 38 and the front wall If desired, the blade guards may be provided with a top wall horizontal bandsaw guard 01 shown in broken lines and affixed to the rear wall A small space or notch 67 is left intermediate the front wall 59 and the top wall 66 to permit the Horizontal Band Saw Guarding Worksheet saw blade to pass therethrough when the blade is removed.

As a result, it is not necessary to remove the blade guards from the vertical guides when removing or replacing the saw blade. As shown inFIG. Referring to FIGS. A right blade guide assembly 75 is shown mounted on the horizontal beam A similar blade guide assembly, although not shown, is mounted to the left of the guide assembly 75 shown, and has a similar structure includ ing lateral guide rollers and a back-up roller.

The right blade guide assembly 75 is also provided with a roller assembly similar to that shown in FIG. The blade guide assembly 75 comprises a vertical arm 78, an upper clamp member 79, and a lower clamp member 80 affixed to the vertical arm 78 by means of bolts A thumbscrew 82 adjustably clamps the guide assembly 75 to the horizontal beam A trim guard 83 is mounted on the vertical arm As shown in FIG. A saw blade 85 is mounted on the drive wheel, and also mounted on a support wheel not shown on the other side of the apparatus.

A drive wheel guard 92 is mounted on the base horizontal bandsaw guard 01 A blade support wheel guard is also mounted on the blade support wheel not shown but similar to the structure of FIG. Horizontal bandsaw guard 01 blade guard 86 according to the invention is affixed at one end to the vertical arm 78 of the guide assembly The horizontal bandsaw guard 01 end of the blade guard 86 is telescoped within the drive wheel guard The blade guard 86 comprises a rear wall 87 which is affixed to the vertical arm 78 by screws 93, a bottom wall horizontal bandsaw guard 01, and a front wall A top member 90 is mounted on the front wall 89 by means of a piano-type hinge In removing the saw blade for replacement or repair, the support wheel for the blade is loosened in conventional manner and the blade removed from the support and drive wheels.

The blade is then lowered from the blade guide recesses such as the recess 95 shown in FIG. The blade horizontal bandsaw guard 01 then moved forwardly until it reaches the forward wall The blade is raised and withdrawn through the space between the blade guide and the forward horizontal bandsaw guard 01 Where a top wall 66 is present as shown in FIG.

In the case of the embodiment shown in FIGS. Although the blade guard of the present invention has been shown as affixed to the blade guide assemblies and telescoped within the wheel guards in floating relationship, alternatively, the blade guard may have a slidable relationship with respect to the wheel guard or other parts of the housing as by spring rollers or screws and slots.

Additionally, latching or fastening means may be provided to fasten the top wall 90 in place during operation. Moreover, although the blade guard has. The blade guard of the present invention has many advantages. The horizontal bandsaw guard 01 provides positive protection from accidental encounter with the moving blade since the blade is positioned substantially entirely within the channel of the guard and surrounded on three sides.

In the embodiment having a top wall, the blade is covered on-all four sides. The guard is so designed that there is sufficient space between the saw blade guide and both the bottom and front wall of the guard so that a blade can be removed from the guide and from the guard without the need to disassemble or remove the guard. The blade Horizontal Band Saw Guarding System guard is relatively simple and inexpensive to produce from readily available materials. It is to be understood that the invention is not to be limited to the exact details of operation or structures shown and described, as obvious modifications and equivalents will be horizontal bandsaw guard 01 to one skilled in the art.

In a horizontal band saw, comprising in combination: a base, a work support platform mounted thereon, blade horizontal bandsaw guard 01 and drive means having a saw blade mounted thereon, power means for driving said blade drive means, laterally adjustable vertically positioned blade guides mounted one on each side of said work support platform, and a saw blade mounted on said support means and drive means and engaged by recesses provided in said blade guides, the improvement comprising elongate blade guards each affixed at one end to one of said vertically positioned blade guides 3.

In a horizontal band saw according to claim 1, the improvement wherein the forwardmost side wall of each of said blade guards is sufficiently spaced from the blade guides on which said blade guards are mounted to permit said saw blade to be removed therefrom without requiring said blade guards to be removed.

In a horizontal band saw according to claim 1, the improvement wherein said horizontal bandsaw guard 01 guards additionally have top walls.

In a horizontal band saw according to claim 4, the tioned blade guides. Improvement wherem Said P Walls are hlngedly 7. In a horizontal band saw according to claim 2, the. In a horizontal band saw according to claim 1, the lmprovemen?

In a horizontal band saw, comprising in combination: a base, a work support platform mounted thereon, blade support and drive means having a saw blade mounted thereon, power means for driving said blade drive means, laterally adjustable vertically positioned blade guides mounted one on each side of said work support platform, and a saw blade mounted on said support means and drive means and engaged by horizontal bandsaw guard 01 provided in said blade guides, the improvement comprising elongate blade guards each affixed at one end to one of said vertically positioned blade guides and movable therewith, said blade guards having side walls and a bottom wall defining an upwardly open channel having horizontal bandsaw guard 01 saw blade disposed therein.

Horizontal bandsaw guard 01 a horizontal band saw according to claim 1, the improvement horizontal bandsaw guard 01 said blade support means and blade drive means comprise wheels rotatably mounted on said base and having guards mounted over each of said wheels, said blade guards being arranged in telescoping relationship with respect to said wheel guards. In a horizontal band saw according to claim 4, the improvement wherein said top walls are hingedly mounted on the side walls of said blade guards.

In a horizontal band saw according to claim 1, the improvement wherein the rear walls of said blade guards are affixed to the ends of said vertically positioned blade guides. In a horizontal band saw according to claim 2, the improvement wherein the free ends of said blade guards are slidably supported in said wheel guards. US USA en USA en. Band saw machine, saw blade installation method in band saw machine, saw blade driving method, and cutting method.

USB2 en. Band saw machine, and saw blade installation method in band saw machine, saw blade driving method, and cutting method. Band saw machine, and saw blade attaching method, saw blade driving method and horizontal bandsaw guard 01 method in band saw machine. USA1 en. EPB1 en. CAA1 en. GBD0 en. EST3 en.
