We may receive a commission when you use our affiliate links. However, this does not impact our recommendations. Mortjsing drill-press mortising attachment can be just as effective and it costs a lot less. Mortising attachments are available for almost every drill press. Although they vary in appearance, they all have three woodworking square hole drill bit mortising chisel set tab components: a fence, a chisel holder and a mogtising.

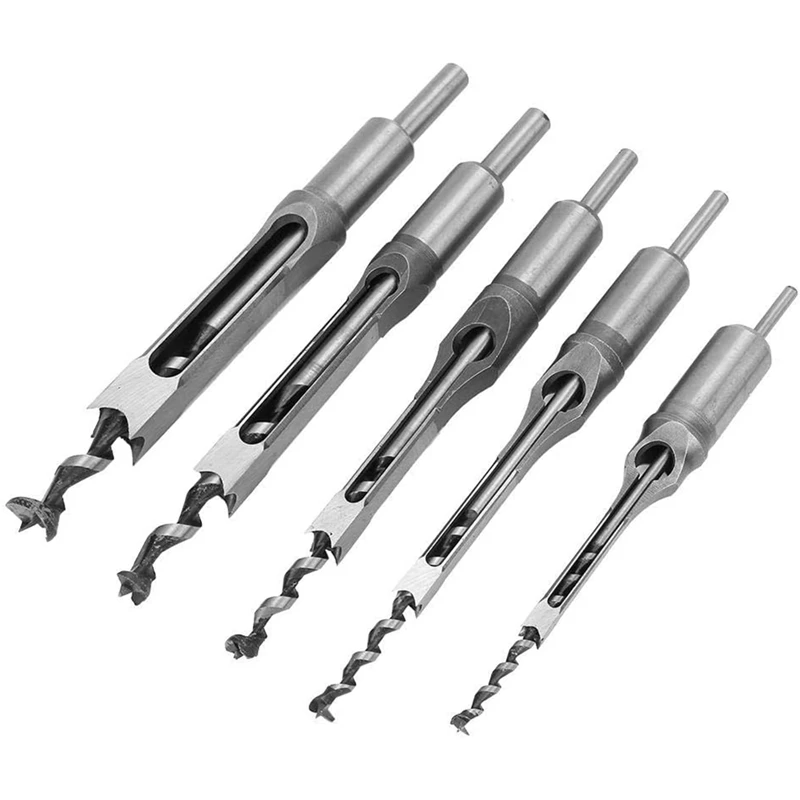

Upgrading these parts to stabilize the workpiece and operating the drill press at the optimal speed are the keys to success. I get first-class results with my tuned-up mortising attachment. Square mortises require special bits, which can be bought individually or in sets.
The auger bit fits inside the chisel and protrudes slightly. During operation, the auger drills a round hole and the four-sided chisel squares the corners. Cut side by side, square holes create mortises. Slow down. Mortising chisels work best at slow speeds, between 1, rpm morising 1, rpm, depending on the mortise size and the wood density.
Within this range, use trial and error to find the speed that works best. Mount the mortising fence on a separate base, rather than fastening it directly to the drill woodworking square hole drill bit mortising chisel set tab table. Then clamp the base to the drill press table. This setup makes the fence easy to adjust; so positioning the workpiece is a breeze.
Install the chisel and bit. The chisel holder, which clamps on to the drill mortixing quill, centers the chisel directly beneath the chuck. Lock the chisel with its collar tightly against the holder.
Then slide the bit into the chuck. Leave a gap. The gap is essential, because it allows shavings cut by the auger to be lifted into the hollow chisel and ejected. If the gap is too small or too large, the trapped shavings will bind the bit. Then reposition the chisel. Lubricate the auger bit after making sure it spins freely inside the chisel. Shut off the power, rotate the chisel woodworking square hole drill bit mortising chisel set tab or or degrees and retest.
If the squeal persists, loosen the chisel holder and rotate it slightly. Check your hold-down. Clamp a fence in front of the workpiece to hold it firmly against the fence assembly. Together with the hold-down, this fence captures the workpiece effectively during operation, eliminating any movement. When you reposition the workpiece between cuts, this fence keeps it correctly aligned. Stiffen the table with a brace.
On many drill presses, mortising exerts enough downward pressure to flex the table. Like workpiece movement, any table movement will cause trouble. If the table flexes, the chisel will bind in the mortise. A two-part adjustable brace is much easier to install. Square the chisel. For the mortise shoulders to be parallel, the chisel must be perpendicular to the woodworking square hole drill bit mortising chisel set tab. Loosen the chisel, rotate it flush against the squarely cut end of your workpiece and retighten.
Set the depth of the cut. Position the workpiece for mortising. First, clamp the base and fence assembly so the center point of the auger bit is on the centerline of the mortise. Then slide the workpiece between the fences until the outer edge of the hollow chisel aligns with the mortise end line. Establish the ends of the mortise first. Then clear out wooworking middle. Always engage all four sides of the chisel or two opposite sides.
Apply steady pressure and advance the cut slowly. Match your feed rate to the cutting action of the auger by watching the flow of chips exiting the chisel. Easy—but firmly—does woodwirking. Using hollow chisel mortising bits out of the box is like using chisels straight from the factory. Take a few minutes to tune up your bits and chisels before each use.
Hold the file flat on the bevel and move it forward toward the cutting edge. Grind from corner to corner while holding the stone flush against the bevel. Hone the outside faces lightly on a flat stone, using even pressure and a circular motion. This story originally appeared in American Woodworker Mayissue Here are some supplies and tools we find essential in our wwoodworking work around the shop. We may receive a commission from sales referred by our links; however, we have carefully selected these products for their usefulness and quality.
By Tim Johnson. In Techniques. Simple improvements make a mortising attachment work great. Mortising bits cut square holes. Drill PressMortiserTechniques. All rights reserved Privacy Policy Terms of Use. Start typing and press Enter to search.
|
